Epm Chuck

Link Copied
15,000.00 / Piece
Business Type Manufacturer, Exporter, Supplier
Color Metallic, BLACK & BLUE
Material Metal, Iron, Copper, Mild Steel
Country of Origin India
Click to view more

Product Details

Application
Machinery Use, Industrial Use
Finishing
Polished
Condition
New
Size
600MM X 400MM
Brand Name
SMP
Pole Configuration
70MM X 70MM , 50MM X 50MM
Pole Type
Square Poles
Capacity
160kg per Pole
Product Code
SMP SERIES 80
Port
MUMBAI JNPT
Payment Terms
L/C, D/A, D/P, Western Union
Packaging Details
WOODEN BOX

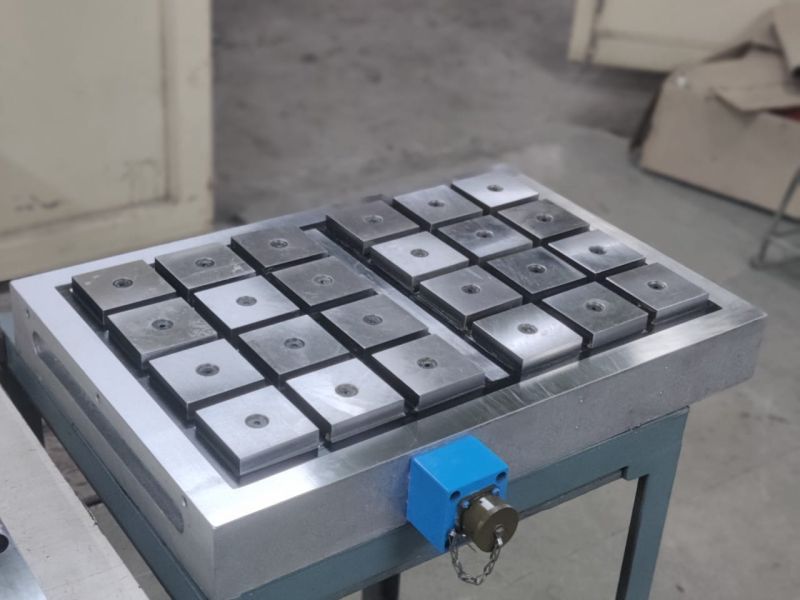

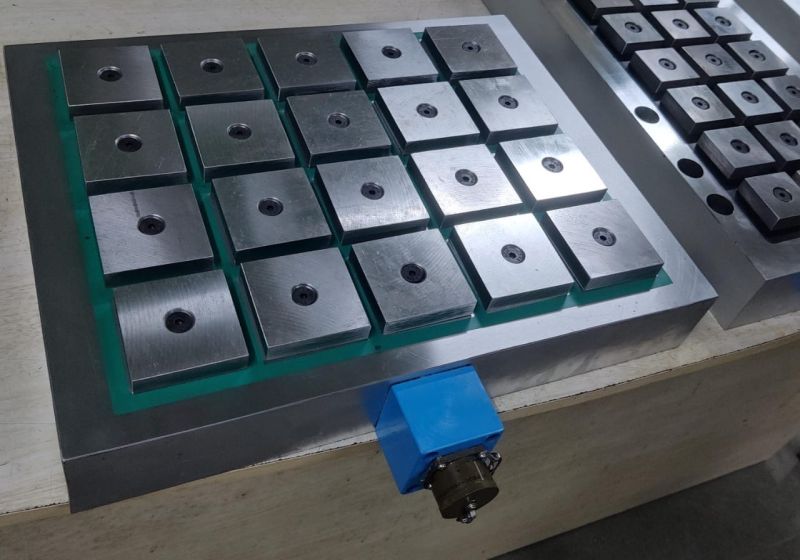

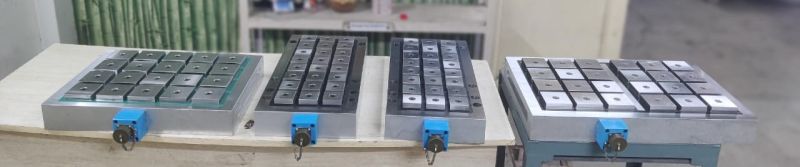

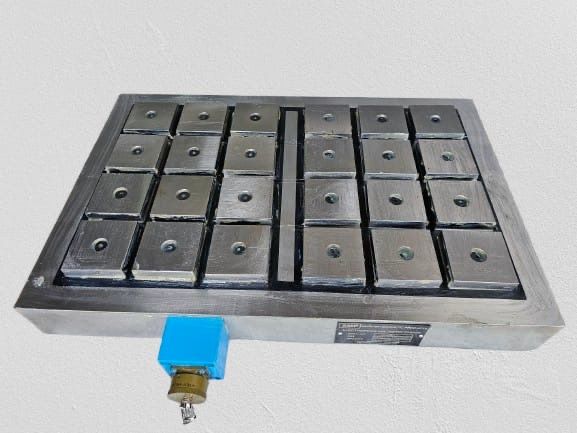

Electro Permanent Magnetic (EPM) Chucks are highly suitable for heavy-duty milling operations, especially on medium, large, and even rough components.

 For proper clamping, at least 4 alternate magnetic poles must come into contact.

 The job clamped magnetically should have a minimum thickness of 20 mm.

 All five faces of the workpiece can be machined in a single setup when clamped magnetically.

The EPM Chuck integrates easily with pallet-changing and FMS (Flexible Manufacturing Systems).
